LMIH Linear Bushing

LMIH Linear Bushing

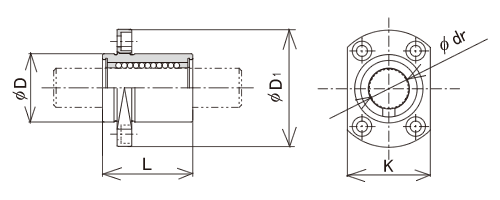

Drawing

Datasheet

Model No.				Main dimensions
	Inscribed bore diameter			Outer diameter		Length		Flange	diameter
	dr	Tolerance		D	Tolerance	L	Tolerance	D₁	Tolerance
		Precision	High		Precision/High
	mm	mm	mm	mm	mm	mm	mm	mm	mm
LMIH 6	6	—	—	12	0	19	±0.3	28	0
					-0.011				-0.2
LMIH 8	8	—	—	15	0	24	±0.3	32	0
					-0.011				-0.2
LMIH 10	10	—	—	19	0	29	±0.3	39	0
					-0.013				-0.2
LMIH 12	12	—	—	21	0	30	±0.3	42	0
					-0.013				-0.2
LMIH 13	13	—	—	23	0	32	±0.3	43	0
					-0.013				-0.2
LMIH 16	16	—	—	28	0	37	±0.3	48	0
					-0.013				-0.2
LMIH 20	20	—	—	32	0	42	±0.3	54	0
					-0.016				-0.2
LMIH 25	25	—	—	40	0 -0.016	59	±0.3	62	0 -0.2
